PostgreSQL's indexes - GIN

July 2019 · 9 minute read

Introduction

GIN (Generalized Inverted Index) indexes are often used to index arrays, jsonb, and tsvector (for fulltext search) columns.
When it comes to array, they are, for example, used to verify if an array contains an other array or elements (the <@ operator).

In the documentation you can see the full list of operators.

But the question that I want to answer in this article is: “why should we use GIN indexes for this data types and operators ?”

I’m going to go over two examples, one for arrays and one for fulltext search.

Before going further, I’ll probably talk a lot about BTrees, so you would probably benefit from reading my blog post about their structure.

So now, the plover birds want to have, for each crocodile, the list of teeth that they had to heal. Because it is much simpler when they see again the crocodile to just know which teeth could be more fragile, and I mean, they see a lot of crocodiles every day, plover birds don’t have an elephant memory.

So I added a new column healed_teeth, an integer array (integer[]). So if I take a totally random crocodile, I’ll have:

croco=# SELECT email, number_of_teeth, healed_teeth FROM crocodile WHERE id =1;
-[ RECORD 1 ]---+--------------------------------------------------------
email           | louise.grandjonc1@croco.com
number_of_teeth | 58
healed_teeth    | {16,11,55,27,22,41,38,2,5,40,52,57,28,50,10,15,1,12,46}

And then I created the following index:

CREATE INDEX ON crocodile USING GIN(healed_teeth);

As for fulltext search, in this new updated version, crocodiles can give their symptoms to help plover bird know what’s wrong.

So I added a column symptoms to the appointment table. As we index tsvector, I also added a symptoms_vector column.

croco=# ALTER TABLE appointment ADD COLUMN symptoms text;
ALTER TABLE
croco=# ALTER TABLE appointment ADD COLUMN symptoms_vector tsvector;
ALTER TABLE

I filled the symptoms with some random dentistry related words that I found on this website. So now I have records looking like this.

croco=# SELECT * FROM appointment WHERE symptoms IS NOT NULL ORDER BY id LIMIT 10;
-[ RECORD 1 ]---+-------------------------------------------------------------
id              | 12809
crocodile_id    | 1
plover_bird_id  | 21970
emergency_level | 7
done            | f
area            | 0101000020E61000000000000000005CC000000000000032C0
schedule        | ["2015-01-03 17:49:00+01","2015-01-03 18:49:00+01")
symptoms        | nozzle, syringe, gingivitis, acute necrotizing ulcerative (ANUG),
                  cornification, globular (adj), loss of primary teeth (SEE shedding
                  of primary teeth), muscle, canine, wear, occlusal, stricture,
                  vitrodentine, apposition, hazard, radiation, system, nervous,
                  sympathetic, eleidine
symptoms_vector | 'acut':4 'adj':10 'anug':7 'apposit':26 'canin':21 'cornif':8
                  'eleidin':32 'gingivit':3 'globular':9 'hazard':27 'loss':11
                  'muscl':20 'necrotizing':5 'nervous':30 'nozzl':1 'occlusal':23
                  'of':12,17 'primary':13,18 'radiat':28 'se':15 'shedding':16
                  'strictur':24 'sympathetic':31 'syring':2 'system':29
                  'teeth':14,19 'ulcer':6 'vitrodentin':25 'wear':22

(These crocodiles have much more dentist vocabulary than me…). And then I created a GIN index on the symptoms_vector column.

CREATE INDEX ON appointment USING GIN(symptoms_vector);

GIN structure

The structure of a GIN index is close to a BTree index. There are a few differences that we’re going to be exploring right now.

Metapage

As for a BTree Index, the first page of a GIN index is the metapage containing information about the index. The difference being the information that is slightly different. For example in a GIN index you won’t find any fast root.

You can see the metapage information using the postgres extension pageinspect

croco_new=# SELECT * FROM gin_metapage_info(get_raw_page('crocodile_healed_teeth_idx', 0));
-[ RECORD 1 ]----+-----------
pending_head     | 4294967295
pending_tail     | 4294967295
tail_free_size   | 0
n_pending_pages  | 0
n_pending_tuples | 0
n_total_pages    | 358
n_entry_pages    | 1
n_data_pages     | 356
n_entries        | 47
version          | 2
  • n_total_pages: indicates the total number of pages in the index (see the introduction article if you’re not familiar with pages)
  • n_entry_page: the number of entry pages
  • n_entries: the number of entries in the index
  • n_data_pages: the number of data pages

In a GIN index there are two types of pages. The entry pages and the data pages.

  • The data pages are the pages inside a posting tree (see the leaves paragraph).
  • The entry pages are the pages containing the values in the index.

Both types of pages have opaque data containing:

  • a flag to define the type (leaf, data, compressed, meta)
  • the right sibling
  • maxoff ?

Entries

The keys (entries) in a GIN index are stored in entry pages in the form of a binary tree.
Until now, this all is very close to a BTree index. Indeed the first page of the index is the metapage, and then the keys are stored into a binary tree.

There are some major differences though…

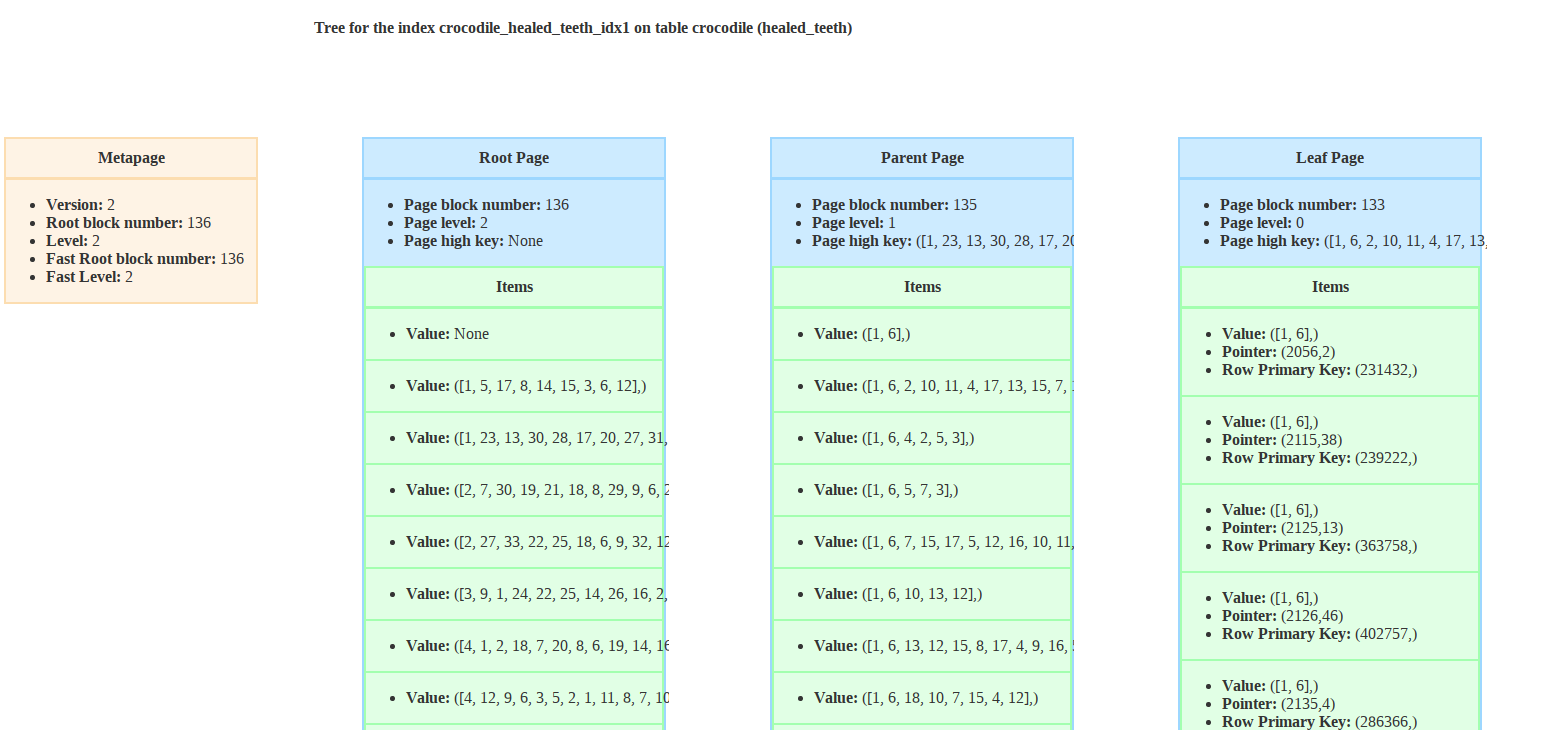

First, if you were indexing an array in a BTree index, the values would be directly the array. So your BTree would look something like that

Alt text

Let’s say we would like to have all the crocodiles who ever had their first and second teeth healed. Here would be the query giving us this result.

SELECT email FROM crocodile WHERE ARRAY[1, 2] <@ healed_teeth;

I dropped the GIN index and here is the result of the EXPLAIN.

 Seq Scan on crocodile  (cost=0.00..9462.04 rows=54786 width=29)
                        (actual time=0.021..158.544 rows=73275 loops=1)
   Filter: ('{1,2}'::integer[] <@ healed_teeth)
   Rows Removed by Filter: 250728
 Planning time: 0.157 ms
 Execution time: 161.716 ms
(5 lignes)

It’s using a sequential scan and not the index, which means that it’s scanning the entire table to find the rows matching the WHERE clause.

In a GIN index, the array is split and each value is an entry. Which means that for the row with healed_teeth being {1, 6}, there will be an entry for 1 and for 6.

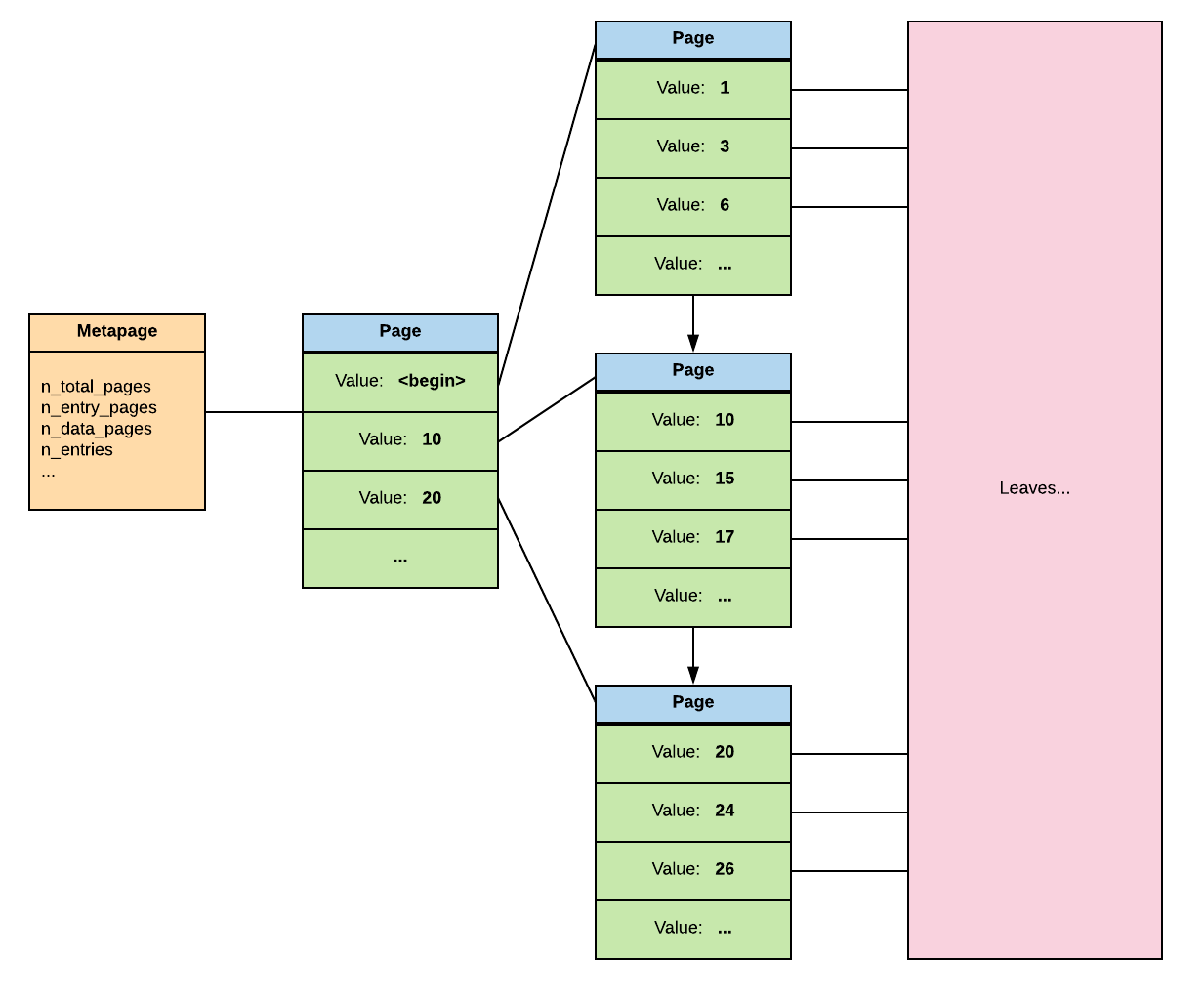

So the BTree on the parent level (we’ll talk about the leaves in a bit) of the GIN index for the healed_teeth would be like this.

Alt text

We can here note that unlike in a BTree, the pages in a same level only have a right link instead or right and left.

So, each value of a list being indexed, it becomes easy to find which crocodiles have the teeth 1 and 2 healed. And as you can see in the following explain, the index is used.

 Bitmap Heap Scan on crocodile  (cost=516.59..6613.42 rows=54786 width=29)
                                (actual time=15.960..38.197 rows=73275 loops=1)
   Recheck Cond: ('{1,2}'::integer[] <@ healed_teeth)
   Heap Blocks: exact=4218
   ->  Bitmap Index Scan on crocodile_healed_teeth_idx  (cost=0.00..502.90 rows=54786 width=0) (actual time=15.302..15.302 rows=73275 loops=1)
         Index Cond: ('{1,2}'::integer[] <@ healed_teeth)
 Planning time: 0.124 ms
 Execution time: 41.018 ms
(7 lignes)

The second difference is that the values are unique in a GIN index.
In a BTree you could have several items with the same value. It’s the tuple (value, pointer) that in a BTree insures the uniqueness of the index entry.

The uniqueness of the values make it so that a GIN index is optimized for cases where the same value appears in many different rows.

Leaf pages

In a BTree index, on the leaf level, there is as many items as rows. So a same value can be repeated several times like you can see in the leaf level of the index on the number of teeth of the crocodile

Alt text

As I said earlier, the entries are unique in a GIN index. So the leaf levels contain either a list or a tree of pointers to the rows.

Posting list and posting tree

In a leaf page, the entries contain a list called posting list of item pointers in a compressed format.

If the list becomes to big so the item can’t fit anymore in the index page, the posting list is splited into different pages that are organised as a BTree. That’s what is called a posting tree. In the leaf item is stored a pointer to this tree instead of the posting list.

The pointers to the heap in a posting list are stored in physical order. In a posting tree the pointers are the keys.

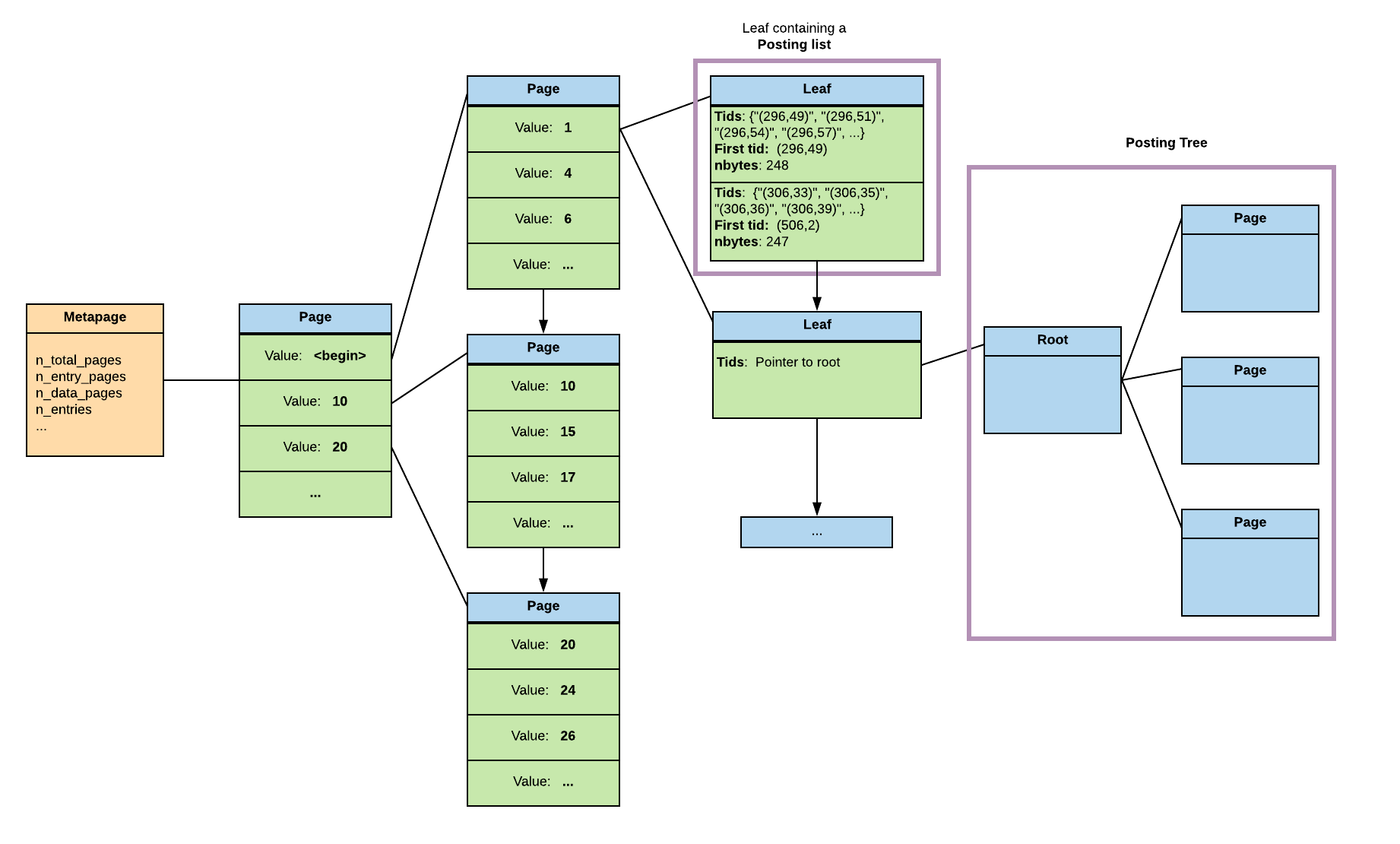

So now that we’ve talked about the leave, here is what a GIN index looks like with its levels :)

Alt text

The pending list

Inserting new rows in a GIN index is quite slow. I will talk about the insert algorithm a bit later, but to sum it up, because of the unicity of the values, an insert is slower than inserting in a normal BTree, indeed the posting list or tree have to be updated.

In order to optimise inserts, we store the new entries in a pending list which is a simple linear list of pages. Once the pending list reaches its limit or there is a VACUUM, the entries are moved to the Btree using a bulk insert which is optimised especially if there are multiple rows for each value.

The pending list limit can be set index by index (see the documentation) or globally with the configuration parametter gin_pending_list_limit.

The downside of the pending list is that when searching in a GIN index, the BTree and the pending list have to be scanned.

If you’re in a case where your data rarely changes and you don’t care about the update being slow, you can disable the pending list by setting fastupdate to false either when you create the index of by using ALTER INDEX.

If you’re using ALTER INDEX the pending list won’t automatically be flushed, so you might need to call VACUUM on your table to ensure that all data are moved to the BTree.

To sum up

To sum up, a GIN index has:

  • A metapage
  • A BTree of key entries
  • The leaves either contain a pointer to a posting tree, or a posting list of heap pointers
  • The pointers are ordered in physical memory order, in the posting tree, it’s the tid that is used as a key to build the tree
  • The rows that are not in the index yet are in a pending list


Conclusion

The GIN index has a really interesting structure. I think that the most important part is to understand that the values indexed are split to get the keys. It’s the reason why it’s very efficient for fulltext search, arrays and jsonb.

But there are also some extensions for integers for example. It could be interesting if you want to index a column that doesn’t have a lot of different values, because the BTree would be optimised. But when it comes to the search, I’ve found that it’s not necessarly better than a BTree, probably because of the posting lists and posting trees that need to be fetched.

In the next article, I will go over the algorithms used to search, insert and delete from a GIN index.
